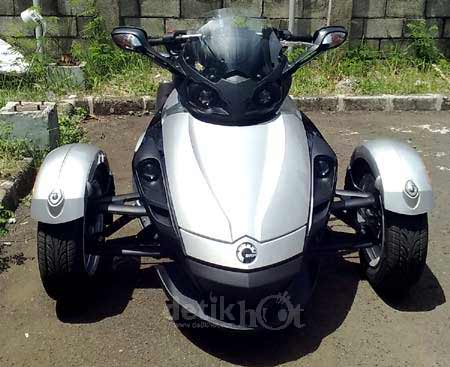

CAN AM SPYDER Raffi Ahmad

Engine
Manufacturer................................BRP-Rotax
Type.............................................. 990 V-Twin
Displacement...............................60.90 in3 (998cc)
Bore.............................................. 3.82 in (97 mm)
Stroke...........................................2 .68 in (68 mm)
Cylinder........................................2
Valves per cylinder.......................DOHC 4
Max output...................................106 hp @ 8500 rpm
(79 kW @ 8500 rpm)
Max torque...................................77 lb-ft @ 6250 rpm
(104.3 Nm @ 6250 rpm)
Compression ratio........................10.8:1
Ignition type.................................Electronic ignition with
dual output coil
Lubrication....................................5W4 0 BRP synthetic oil
Exhaust system.............................2-into-1 with catalytic converter
Cooling.........................................Li quid cooled
Injection........................................M ulti-point EFI with 57 mm
diameter throttle bodies

Drive Train
Gear box......................................Sequentia l Manual 5-Speed (SM5)
with transmission-based reverse
Optional gear box........................Sequential Electronic 5-Speed (SE5)
with transmission-based reverse
Final drive.....................................28/79 ratio final drive with
Carbon-reinforced drive belt
Clutch...........................................W et, multi-plate, manual or electronic
operation through a hydraulic piston

Electric Equipment
Magneto.......................................500 Watt
Starter........................................... Electric
Battery..........................................D ry Cell, 12V, 21 Amp

Geometry
Front suspension..........................Double A-Arm with anti-roll bar
Front suspension travel................5.67 in (144 mm) with adjustable cam
Rear suspension...........................Swing-arm with monoshock
Rear suspension travel.................5.71 in (145 mm) with adjustable cam
Chassis type.................................SST Spyder
(Surrounding Spar Technology)
Steering........................................DP S (Dynamic Power Steering)

Tires & Wheels
Front tire.......................................KR21 165/65R14
Front nominal pressure................13-17 psi (89-117 kPa)
Rear tire........................................KR21 225/50R15
Rear nominal pressure..................26-30 psi (179-207 kPa)
Wheel size, front...........................Aluminum 14x5 (355x127)
Wheel size, rear............................Aluminum 15x7 (381x178)

Brakes
Type..........................................Foot-actuated, fully integrated
hydraulic 3-wheel braking system
Front braking system................4 piston calipers with 10.2 in x 0.25 in
(260 mm x 6 mm) discs
Rear braking system.................Single-piston caliper with 10.2 in x 0.25 in
(260 mm x 6 mm) disc
EBD..........................................Elect ronic Brake Distribution
ABS...........................................Anti-lock Braking System
Parking brake...........................Mechanical, foot actuated to the
rear caliper

Safety & Security
VSS...........................................Vehi cle Stability System
ABS...........................................Anti-lock Braking System
TCS...........................................Trac tion Control System
SCS...........................................Stab ility Control System with
Roll-Over Mitigation
DPS...........................................Dyna mic Power Steering
DESS.........................................Digit ally Encoded Security System

Vehicle Dimensions & Weights
Dry vehicle weight....................697 lbs (316 kg)
Front storage capacity.............2,685 in3 (44 l)
Front max load capacity...........30 lbs (15.9 kg)
Total vehicle load allowed........440 lbs (200 kg)
Fuel capacity............................6.6 US gal (25 l)
Oil capacity..............................1.19 US gal (4.5 l)
Coolant capacity......................0.85 US gal (3.2 l)
GVWR.......................................1,188 lbs (540 kg)
Ground clearance.....................4.5 in (115 mm)
Vehicle overall height...............45.1 in (1,145 mm)
Vehicle overall length...............105 in (2,667 mm)
Vehicle overall width................59.3 in (1,506 mm)
Seat (top) height.......................29 in (737 mm)
Wheel base..............................68 in (1,727 mm)
Wheel track, front.....................51.5 in (1,308 mm)
Type of gas...............................Unleaded, 87 octane minimum

Features & Main Options
Color choices...........................Full Moon
Millennium Yellow
Roadster Red
Instrumentation........................Dual analog and LCD w/speedometer,
tachometer, electric fuel gauge,
daily trip (A & B) meters, engine
temperature, ambient temperature
and gear position indicator. Information
displayed in either metric or US Standards
Main options............................Fog lights, xenon lights,
mono seat cover, racing exhaust pipe,
travel bags, cargo liner, passenger
backrest, low and high windshields




width: 568px; height: 400px;"

Tuesday, May 25, 2010

Motor with many wheels rekor muri

This unique motorcycle tires as much as 16 pieces, each numbered four tires on each side of fruit
MURI Chairman Jaya Suprana try unique motorhome which has 16 tire in Senayan, Jakarta. (Doc Mizzle).

Most Motor With Tire
Photographers - Pool
Motor usually consists of only two or three wheels. However, this motor has 16 wheels. This unique motor any Indonesian Museum of Records holds the record as the largest motorcycle tires.
Motor with many wheels rekor muri

Motor with many wheels rekor muri

Modification Honda Retro Scoopy

As a trendsetter skutik retro, AHM Scoopy equip with a thick design with retro-modern impression that has never owned by other manufacturers in Indonesia. The Retro Honda Scoopy Released
Photographers - Syubhan Akib
Motor skutik increasingly diverse. Honda released the Honda Scoopy, a unique skutik with retro-modern design to meet the lifestyle needs of young people in Indonesia
 gambar Modification Honda Retro Scoopy

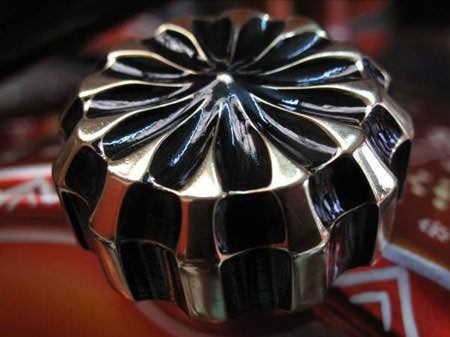

Harley Bermotif Batik dan Candi modification
